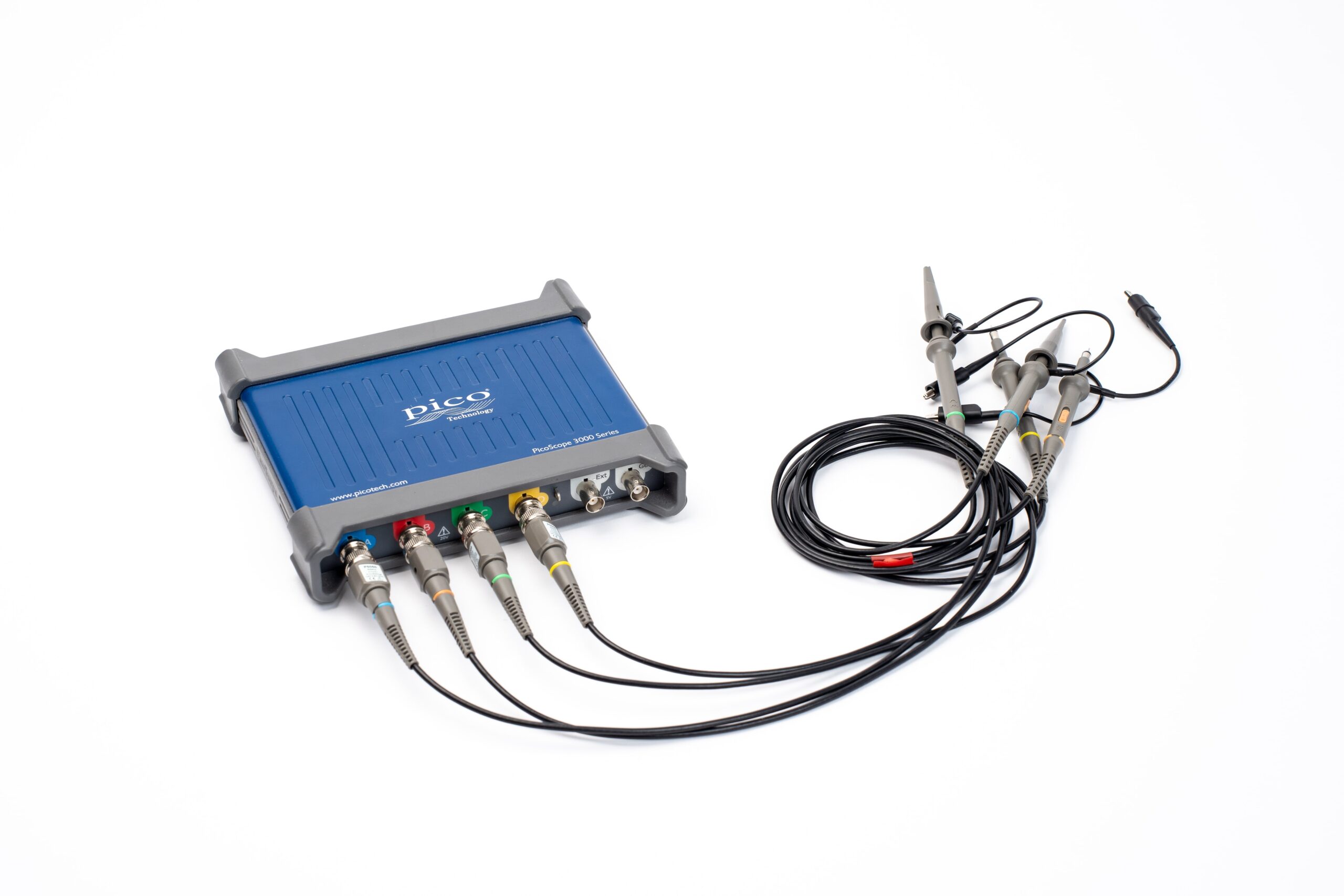

PicoScope 3404B

The PicoScope 3404B is a versatile USB oscilloscope with powerful features and ease of use. It has a wide analog bandwidth of 60 MHz, allowing precise waveform capture and analysis. It has a real-time sampling rate of 1 GS/s and a large buffer memory of 128 MS, allowing for high-definition capture of complex waveforms. With four input channels and an adjustable input voltage range, it accommodates various signal amplitudes for accurate measurements. The built-in 14-bit arbitrary waveform generator allows users to generate custom waveforms for stimulus or testing purposes.

Category:
  • 4 Channels and an external trigger
  • Up to 128 MS buffer size
  • Up to 10 GS/s of repetitive sampling
  • Advanced digital triggers
  • Built-in spectrum analyser
  • Built-in function generator
  • Arbitrary waveform generator option

At Systec Designs, we offer comprehensive testing and analysis services using the PicoScope 3404B. Our skilled technicians utilize the full capabilities of this oscilloscope to perform detailed measurements, diagnose issues, and optimize the performance of your electronic systems. With our expertise and state-of-the-art equipment, we ensure reliable and accurate results for your testing needs.

Bandwith

60 MHz
Manufacturer

Pico Technology
Sampling Rate

1 GSPS
